SGT-3DPEGS (short scale)

The third in the SGT-3DPEG series! A short-scale, three-piece, high-quality portable electric guitar. Price: 100,650 yen (tax included, case not included).

The third release in the SGT-3DPEG series!
Short scale!

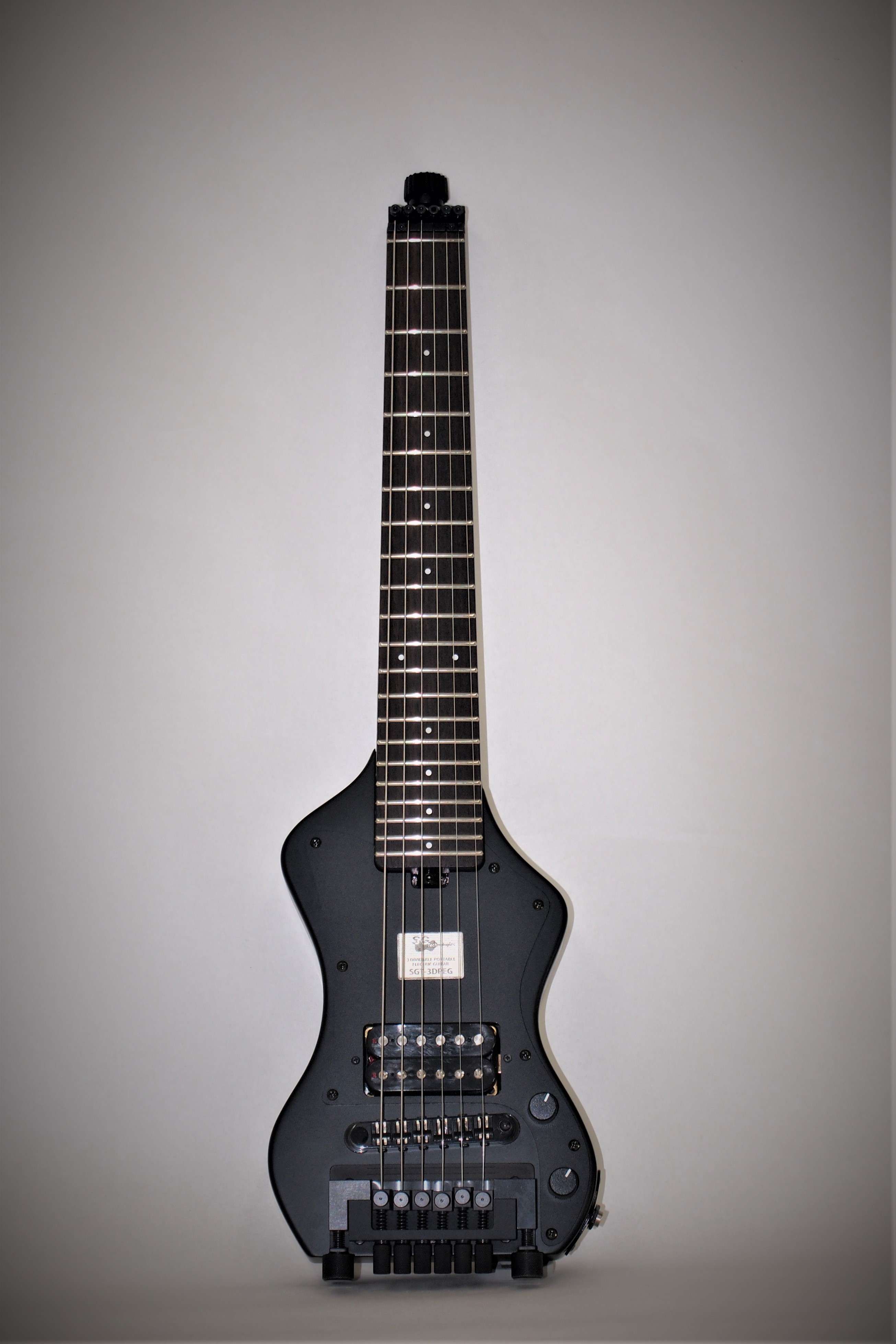

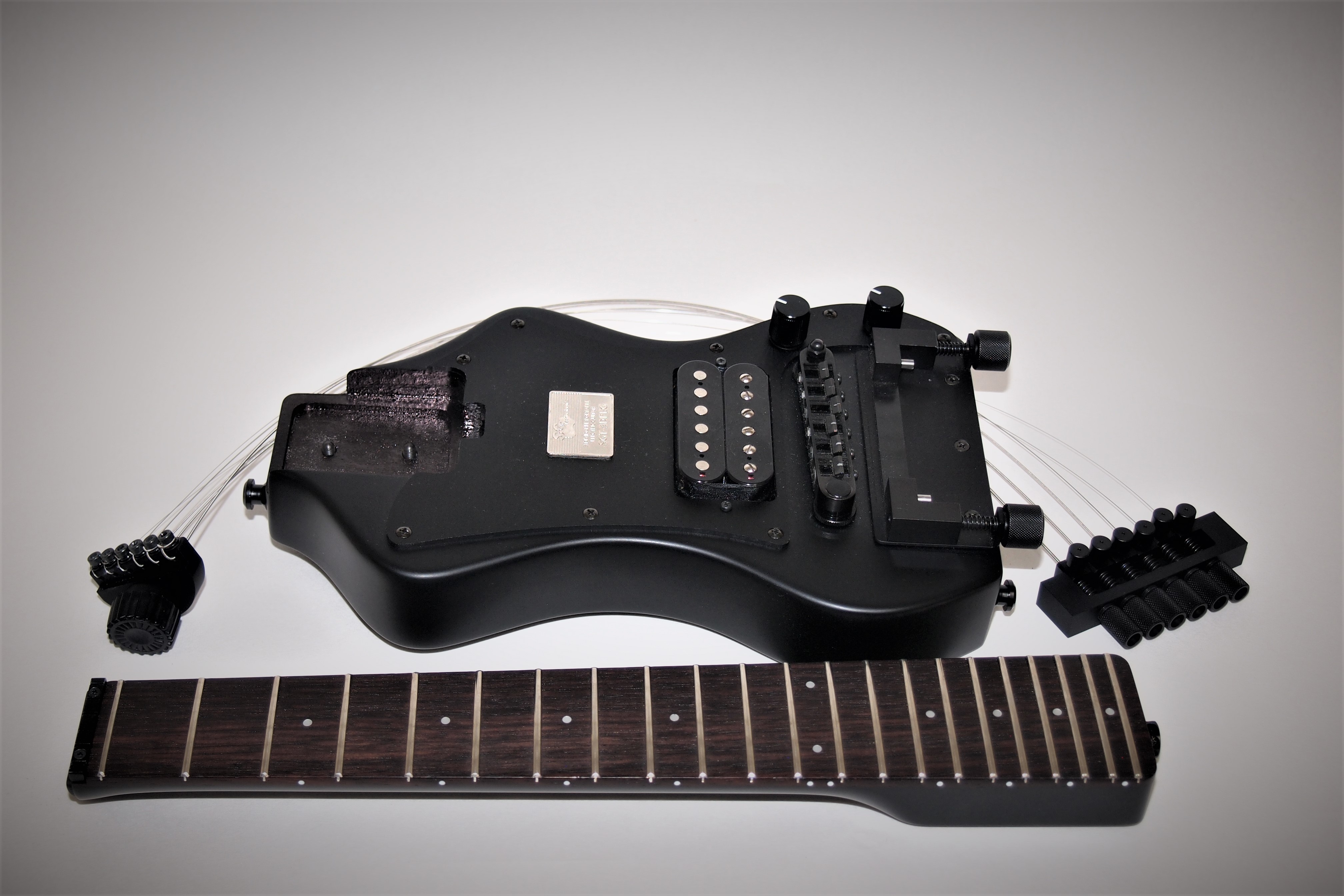

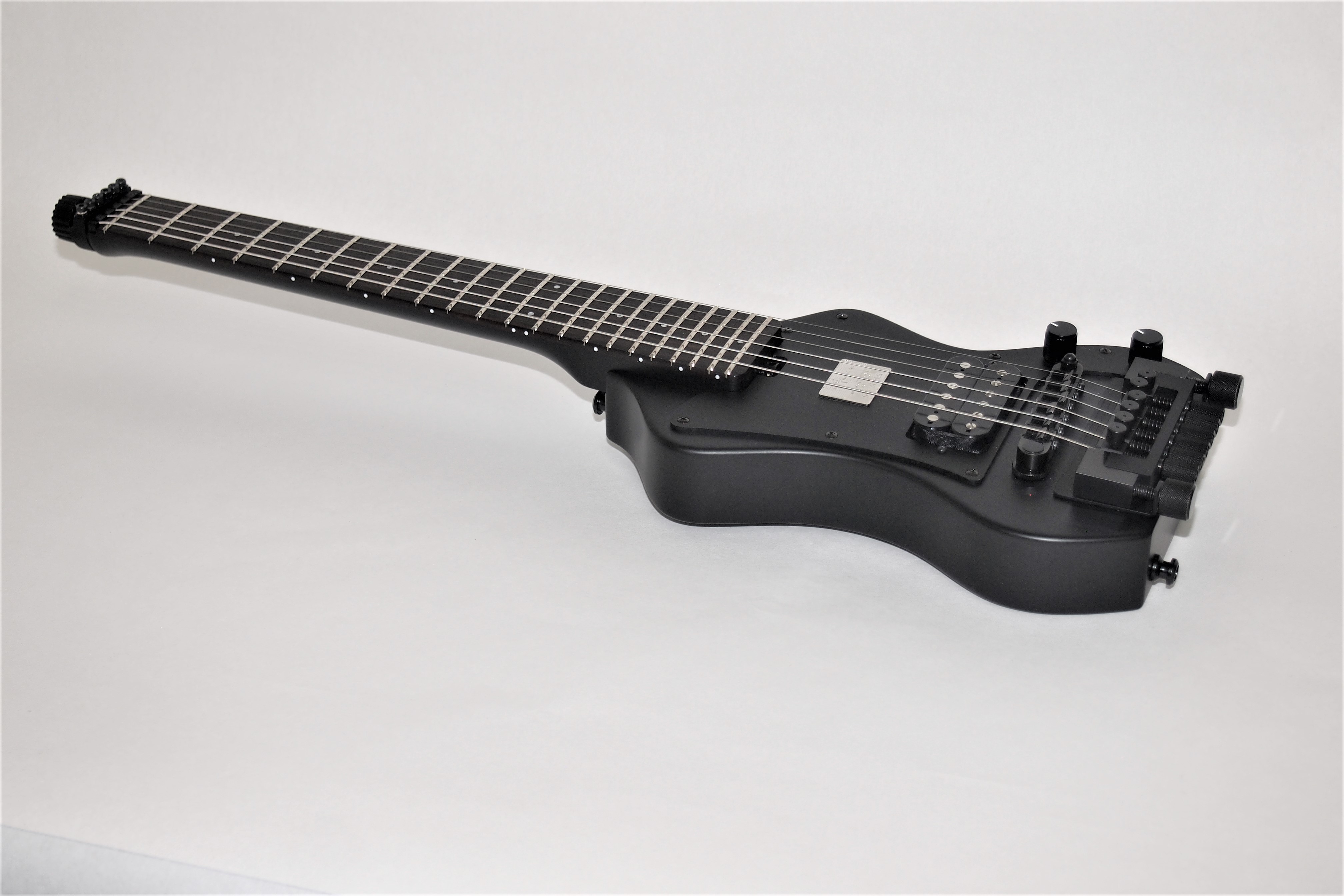

It’s an ultra-mini size, measuring just 60cm in length. When the body, neck, and strings are divided into three sections, even the longest neck is only about 37cm. It can be easily stored in an attaché case or backpack, making it easy to carry anywhere. It’s also carry-on safe , even in its dedicated hard case.This mini electric guitar boasts numerous features, including a well-balanced design that eliminates the head drop (where the head is too heavy and the body lifts up) common in travel guitars, a zero fret for minimal tuning errors, and a neck that allows for smooth fingering on par with that of a high-end guitar. It’sperfect for travel, business trips, practice, mini concerts, picnics, and more.

SPECIFICATION

1. Body: Solid burl
2. Neck: Maple
3. Fingerboard: Rosewood
4. Number of Frets: 22 (including 0 fret)
5. Neck Scale: 19.2 inches (487 mm)
6. Overall Length: 602 mm (including protrusions) (Neck only length: 377 mm, Body only length: 290 mm)
7. Adjustable Truss Rod: Spoke Wheel Nut Type
8. Pickup: Humbucker x 1
9. Bridge: Gotoh GE-103B
10. Controls: 1 volume, 1 tone
11. Body Finish: Matte Black
12. Detachable Tuners: SGT Original (PAT6058304)
13. Weight: Approximately 1.6 kg

Guitar set contents

・Order No. SGT-3DPEGS Set contents
1. SGT-3DPEGS main body (body, neck, string unit) 1
2. SGT-3DPEGS owner’s manual 1
3. SGT-3DPEGS dedicated strap 1
4. Warranty card 1
5. Hex wrench 1
6. Spoke wheel wrench 1

MANUAL　DOWNLOAD

SGT-3DPEGS Manual download

OPTION１

● Dedicated hard case SGT-3DPEGSHC
　　This dedicated hard case for the SGT-3DPEGS is safe for carry-on luggage and transportation by courier. External dimensions: 40 x 25 x 13 cm (excluding protrusions) Weight: 1.7 kg (hard case only) 3.3 kg (with guitar inside)

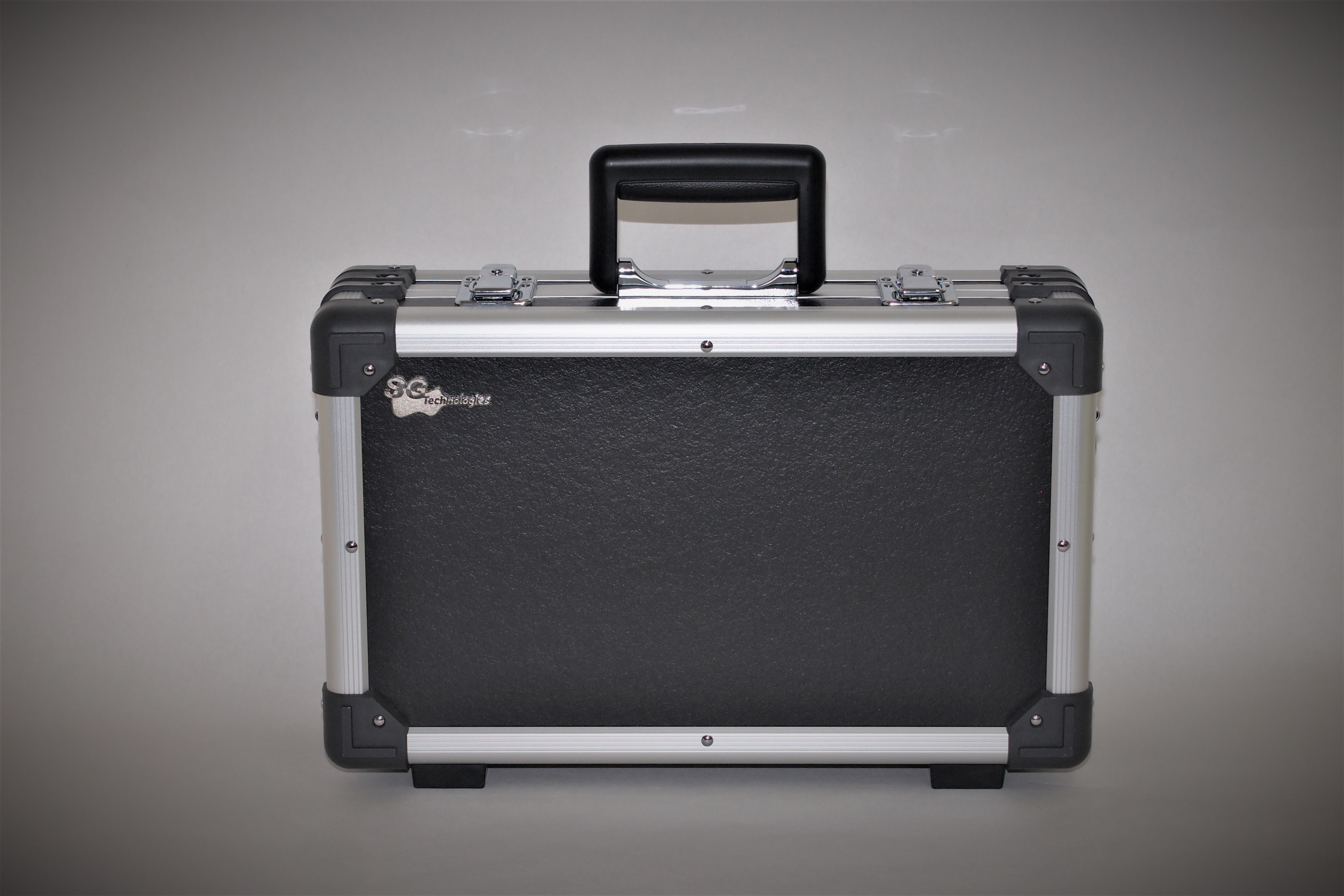

Appearance of the SGT-3DPEGSHC hard case for the SGT-3DPEGS

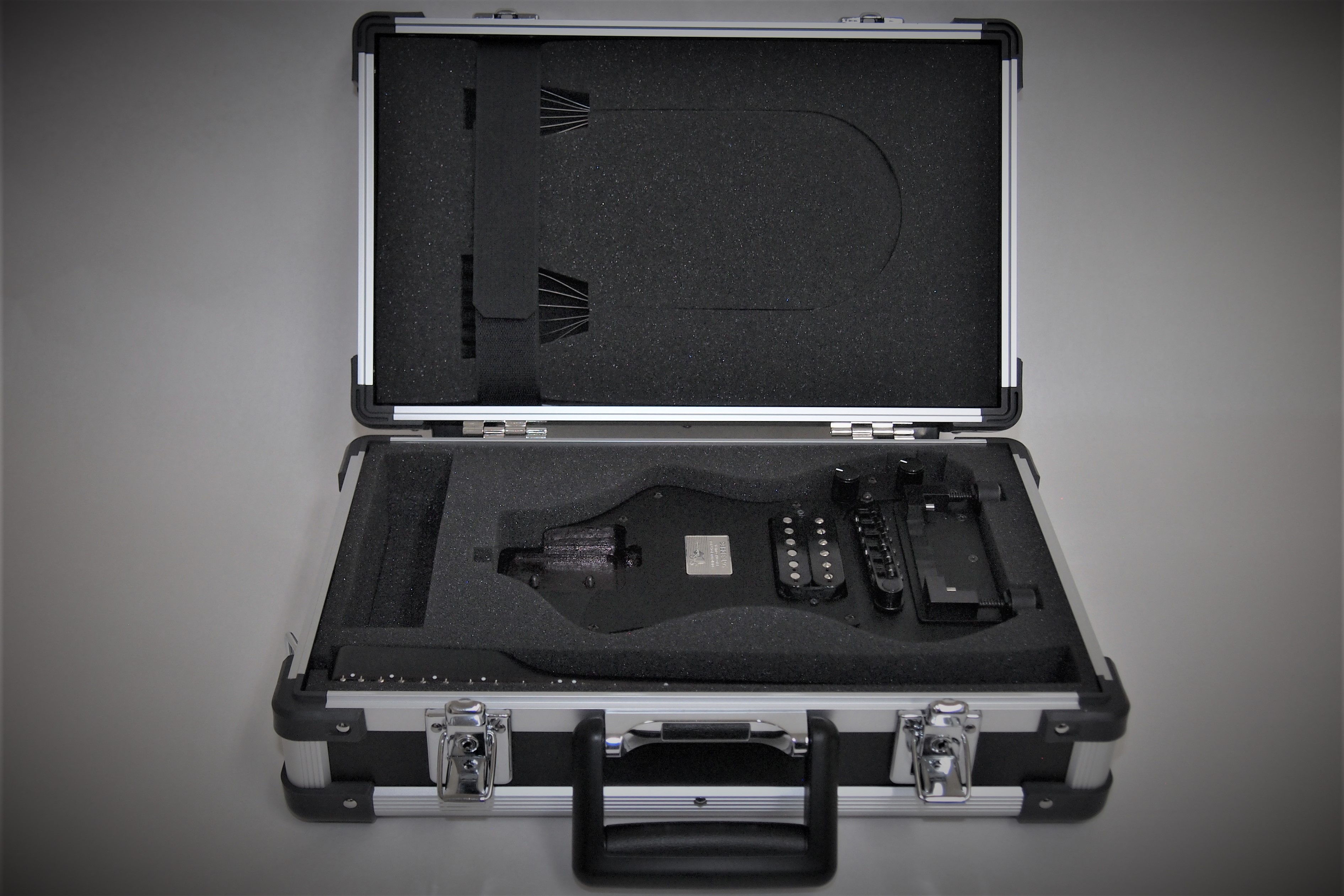

Inside the SGT-3DPEGSHC hard case for the SGT-3DPEGS

OPTION2

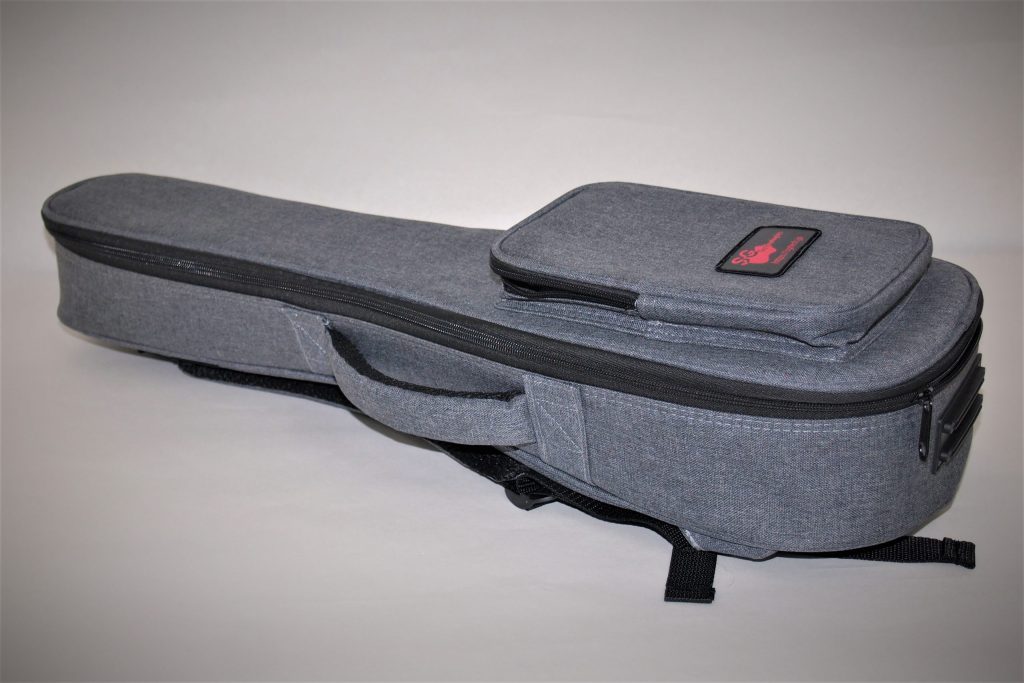

Dedicated soft case SGT-3DPEGSSC
Dedicated soft case for SGT-3DPEGS Total length 66cm Weight 750g (soft case only)

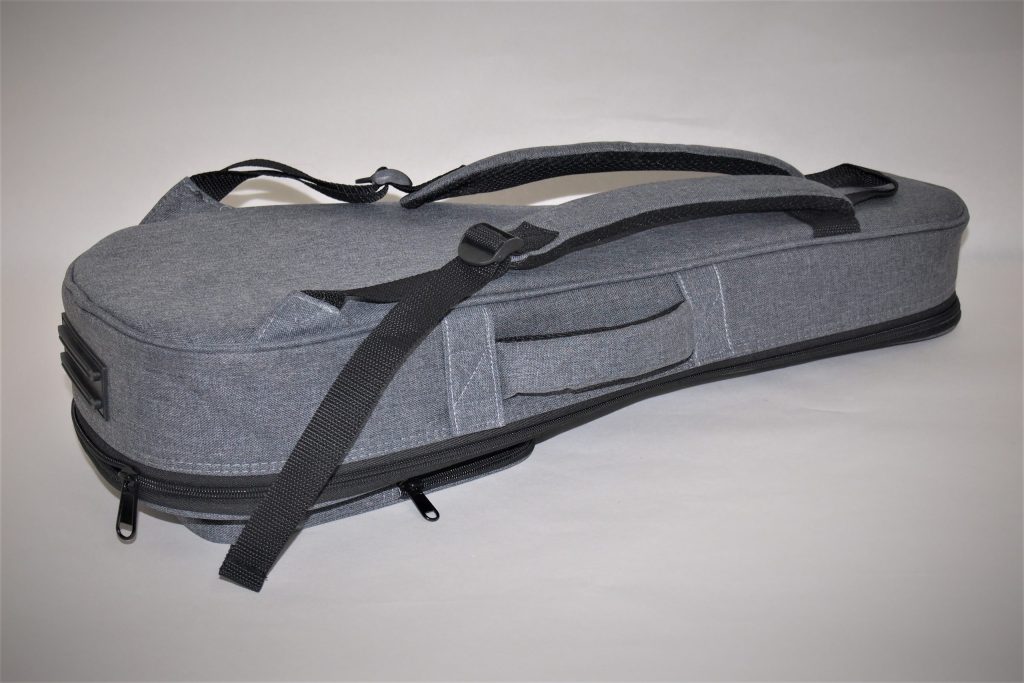

SGT-3DPEGS dedicated soft case SGT-3DPEGSSC inside

OPTION3

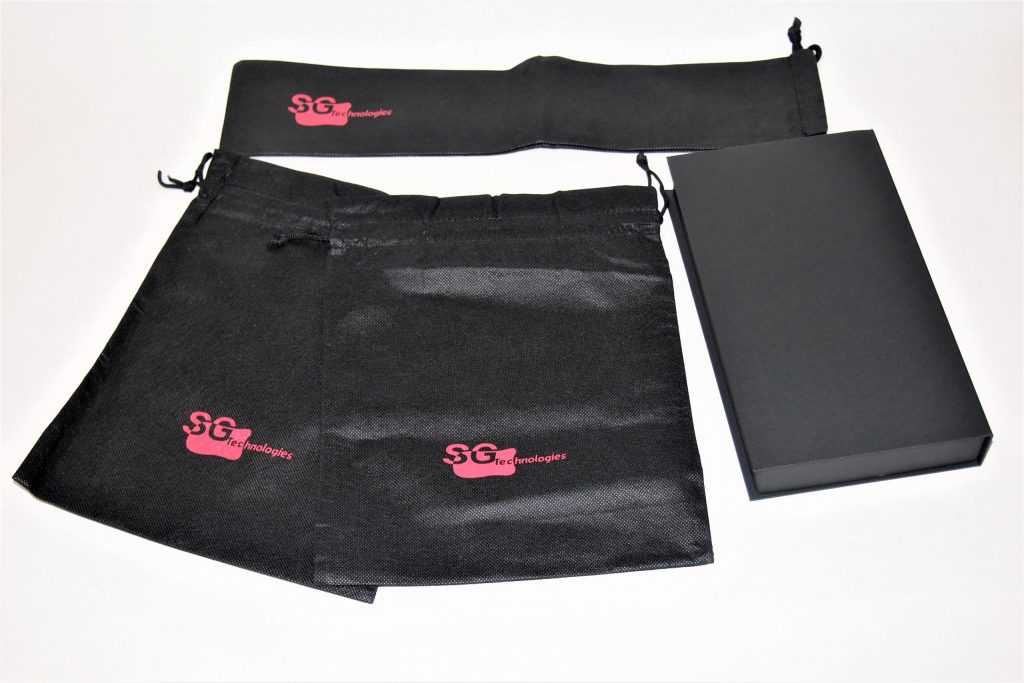

● Dedicated Drawstring Bag Set SGT-3DPEGDS2
This drawstring bag set is perfect for those who travel or go on business trips by putting it in their own travel bag. This set includes three drawstring bags: one for the body, one for the neck, and one for the string unit, as well as a cardboard-lined box (urethane interior) for the string unit. It can be carried in a travel bag or backpack.

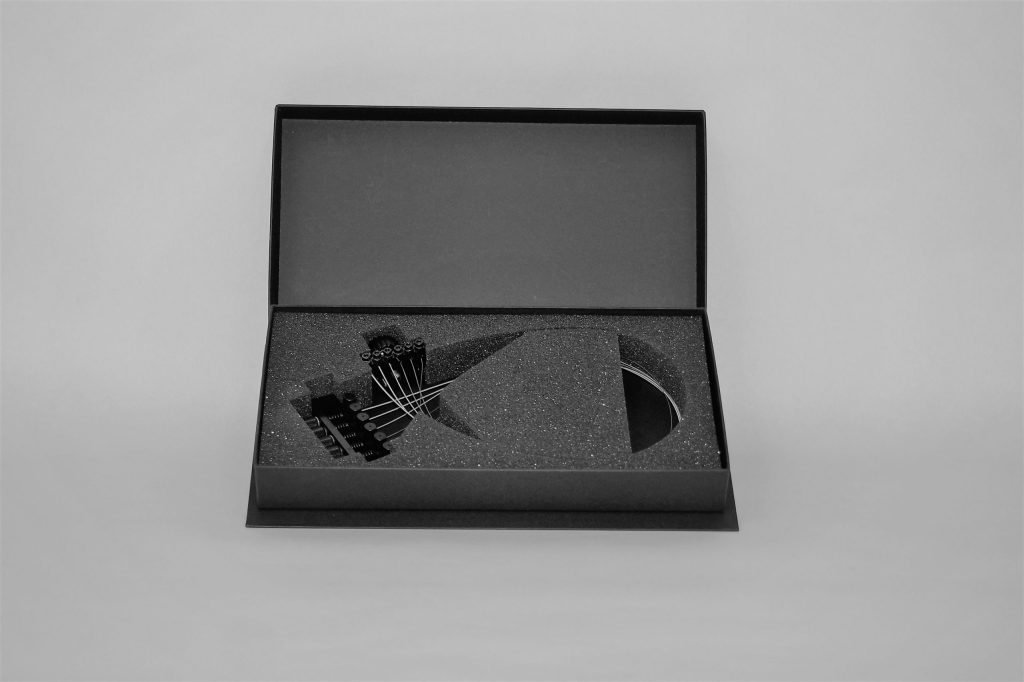

String box: 295 x 170 x 40 mm, weight 520 g (including string unit)
Body: 290 x 170 x 50 mm, weight 1 kg
Neck: 365 x 55 x 28 mm, weight 440 g

OPTION４

Lightweight Bag: This lightweight bag can store the SGT-3DPEGEB01
　lightweight bag set, SGT-3DPEGEB03
drawstring bag, and SGT-3DPEGDS2. Its unique features include a neck pocket on the inside and a divider between the string box and body, allowing you to store your guitar very compactly. The SGT-3DPEGEB03 is a set that includes the drawstring bag set and lightweight bag.
